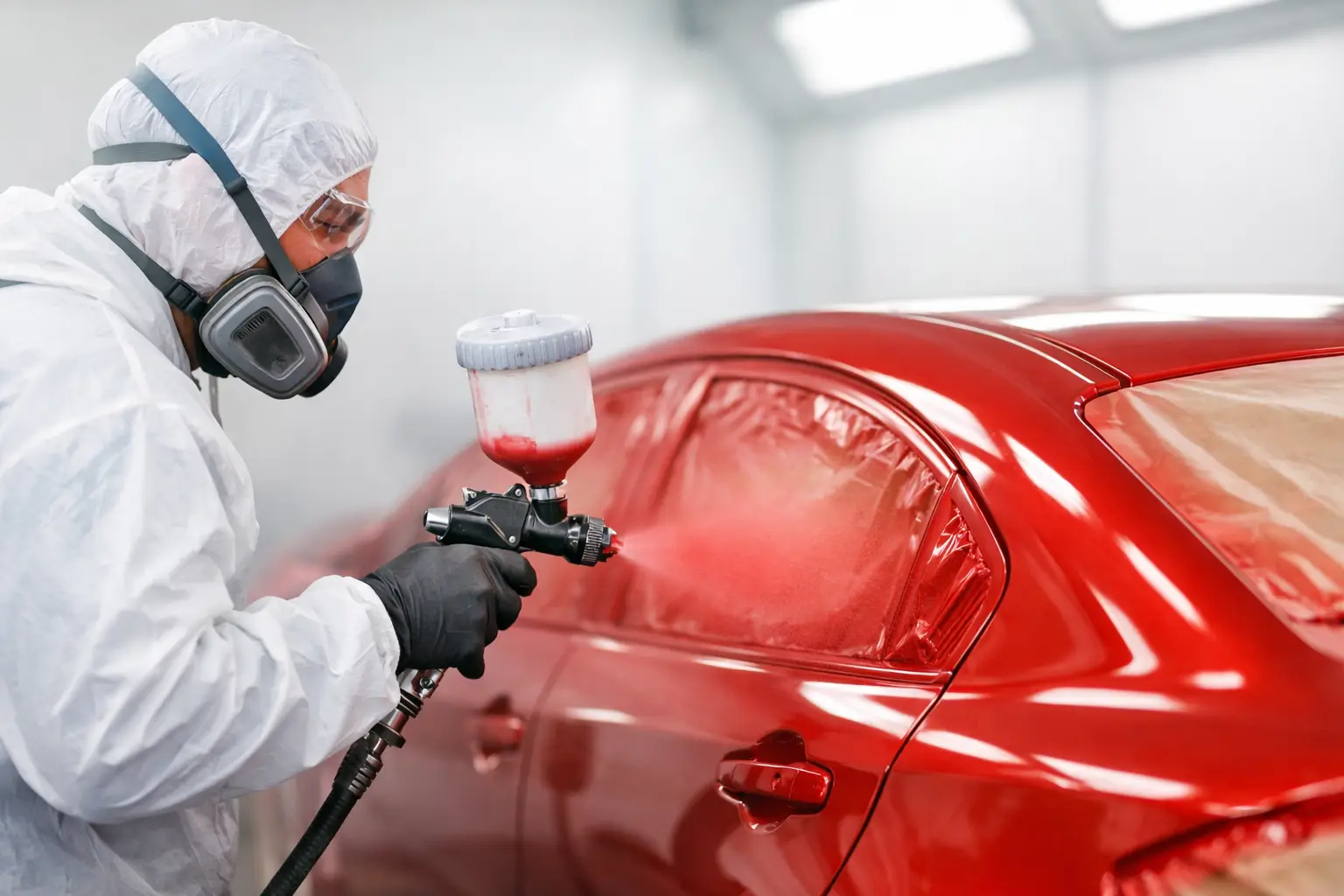

Spraying Single Stage Automotive Paint Right

A single-stage job can make a driver, race car, engine bay, or restored truck look properly finished without the extra material and spray steps of a basecoat-clearcoat system. But spraying single stage automotive paint leaves nowhere to hide. The color, gloss, and final surface are all in the same product. Gun setup, panel prep, overlap, and flash time show up immediately.

Single stage is a solid choice when you want a durable, direct-to-metal or primer-overcoat finish with a traditional look. It is common on older restorations, chassis components, utility vehicles, trailers, and budget-conscious full resprays. It can also be a good fit for underhood panels and race applications where a clean, serviceable finish matters more than a deep clear-coated show gloss.

Know What Single Stage Paint Will and Will Not Do

Single-stage urethane combines pigment and gloss in one coating. Once it cures, there is no separate clear layer protecting the color. That keeps the process simpler and reduces material cost, but it also means sanding, buffing, and repair work require more care. Sand too aggressively and you are cutting directly into the color coat.

For solid colors, black, white, red, and many fleet-style shades, single stage can deliver an excellent finish. Metallic and pearl colors are more demanding. They can be sprayed successfully, but uneven overlap or inconsistent gun distance can create striping, mottling, or a patchy appearance. If a high-end metallic finish and maximum repair flexibility are the goal, a basecoat-clearcoat system may be the better call.

Do not choose a paint system based only on the label color. Read the technical data sheet for its mix ratio, reducer temperature range, recommended tip size, induction time if required, flash window, and recoat instructions. Those details are part of the product, not optional fine print.

Surface Preparation Determines the Finish

Paint does not fix bad bodywork, failing old coatings, rust scale, silicone contamination, or sanding scratches that are too coarse. It highlights them. The work done before mixing paint is what separates a finish that looks good for years from one that lifts, shrinks, or shows every repair line after a few heat cycles.

Start with a stable substrate. Bare steel needs the correct corrosion-control foundation, followed by compatible primer where the system calls for it. Epoxy primer is often the right starting point over properly cleaned bare metal, repairs, and blasted panels. High-build primer belongs over work that still needs blocking and leveling. Finish-sand according to the paint manufacturer’s recommendation. Many single-stage systems call for a finer final grit than people expect.

Clean the panel thoroughly before sanding and again before spraying. Use a quality wax and grease remover with clean lint-free wipes, changing wipes before they become saturated. Do not use shop rags that have touched oil, tire dressing, polishing compound, or silicone products. Blow seams, body lines, jambs, and panel gaps clean. A tack cloth should remove the last loose dust, not compensate for poor cleaning.

Mask with purpose. Overspray travels farther than most first-time painters expect, especially with a fast-moving fan pattern and high inlet pressure. Cover glass, tires, suspension, engine components, nearby projects, and anything you do not want permanently dusted with color.

Equipment Setup for Spraying Single Stage Automotive Paint

A decent spray gun can produce a good finish, but it needs clean, dry air and a setup that matches the coating. Water and oil in the air line can ruin a job with fisheyes, blushing, adhesion trouble, or dull spots. Drain the compressor, use proper filtration, and make sure the air hose is clean. Do not run the final length of hose through a puddle, across a dusty floor, or beside a grinding operation.

Most full-size automotive paints are sprayed with an HVLP or compliant gun using a tip size commonly around 1.3 to 1.4 mm, though the product sheet wins over general advice. Primer, thick single-stage products, and specialty coatings may need a larger setup. Begin with the gun’s fluid control opened enough to make a full wet pattern, set fan width for the panel being sprayed, and adjust pressure at the gun with air flowing.

Test the pattern on masking paper before you touch the vehicle. You want an even, football-shaped pattern with consistent material across the center and edges. Heavy top or bottom loading points to a dirty or damaged air cap, fluid tip issue, or incorrect setup. A split pattern can indicate too much air pressure or an air passage problem. Fix the gun before trying to paint around it.

Use a clean mixing cup, correct measuring scale, strain the mixed paint into the gun, and mix only what can be sprayed within its usable pot life. If the system uses an isocyanate hardener, a proper supplied-air setup is the professional standard. At minimum, do not treat fresh-air safety casually. Spray in a controlled, ventilated area with appropriate protective equipment, keep ignition sources away, and follow the coating manufacturer’s safety documentation.

Apply Wet, Even Coats Without Chasing Gloss

Hold the gun roughly 6 to 8 inches from the panel unless the product sheet says otherwise. Keep it square to the surface and move it parallel with the panel. Arcing the gun at the wrist makes the center of a pass wet and the edges dry, which creates uneven film build and texture.

Overlap each pass by about 50 percent. Start moving before pulling the trigger, and release the trigger after passing the panel edge. This keeps the ends of each pass from loading up with paint. On a hood or roof, map out your passes before spraying. On doors and quarters, work in a consistent direction and watch the wet edge.

The first coat is usually a medium-wet coat, not a dry dusting and not a heavy flood coat. Give it the specified flash time, then apply the next coat with enough material to flow out without running. Most jobs need two or three coats depending on color coverage, product recommendation, and the final appearance of the panel.

Do not keep adding coats simply because the surface does not look like wet clearcoat during the first pass. Overloading single stage is a quick route to curtains, sags, solvent pop, and long cure times. If the paint looks dry and rough, identify the cause: the gun may be too far away, moving too fast, atomizing too hard, or using reducer that is too fast for the booth temperature.

Temperature matters. In hot, dry conditions, fast reducer can flash before the coating has time to level. In cool weather, slow curing and trapped solvent become bigger risks. Match reducer speed to the actual panel and shop temperature, not just the weather report. Steel panels in direct sun can be far hotter than the surrounding air.

Read Defects Before You Try to Fix Them

Orange peel is often a setup or technique issue, but some texture is normal and can be corrected after full cure. Runs happen when too much material lands in one area, usually at panel edges, body lines, lower sections, or where the painter slows down. Let a run cure fully before leveling it. Trying to wipe or brush it while wet almost always makes the repair larger.

Dry spray leaves a rough, dull surface and weakens the appearance of the finish. It often comes from excessive gun distance, poor overlap, fast reducer, or a panel that is too hot. Fisheyes are contamination until proven otherwise. Stop blaming the paint when the real issue is silicone, oil, unclean air, or a contaminated surface.

If you plan to color sand and buff, give the coating enough cure time. Then use a careful progression of fine abrasives, keep the surface clean, and avoid sharp edges. Single stage can polish beautifully, but the margin for error is smaller than with a thick clearcoat. Build enough film during application, then correct only what needs correction.

Give the Finish Time to Harden

A panel can feel dry and still be too soft for assembly, washing, fuel exposure, or aggressive polishing. Follow the published cure schedule before reinstalling trim, weatherstrips, lights, and hardware. Fresh paint is easy to mark with tape, fingerprints, and careless wrench work.

For a restoration or race build, plan the paint operation around the rest of the work. Finish welding, grinding, test-fitting, and dirty fabrication before the final topcoat whenever possible. GTPRACING customers building chassis, engine bays, body panels, and track cars know the fastest way to repaint a part is to install it before the coating has earned its cure time.

A clean single-stage finish is not about magic products or a perfect booth. It comes from compatible materials, dry air, disciplined prep, and controlled passes. Slow down at the setup stage, spray a test panel when the color or product is unfamiliar, and let the coating cure before putting the project back to work.
